Ferrite(Ceramic) Magnet is manufactured from oxide materials using powder metallurgical process. Ceramic magnet is most widely used because of its low cost, high-energy, good electric insulation and excellent resistance to demagnetization. The most common type of ceramic magnets are anisotropic strontium, anisotropic barium and isotropic barium magnet.
Ferrite (Ceramic) Magnets are essentially composed of oxide materials with Barium Carbonate or Strontium Carbonate, manufactured under a powder metallurgical process. The feature of low recoil permeability, along with the high coercive force, makes them highly resistant to demagnetizing fields. In addition, their relatively low specific density and economical cost are also very attractive to the magnet designers. When designing the ferrite magnets for a particular application, primary consideration should be given to its shape limitation due to the powder metallurgical manufacturing process and the temperature dependence of ferrite materials. Ferrite Magnets has good anti-corrosion performance, no surface treatment needed. There are two manufacturing process for ferrite magnets:
Dry Process & Wet Process.By dry process, can produce isotropic & anisotropic magnets; by wet process, only anisotropic magnets can be produced.Isotropic ferrite magnets are not oriented and can be magnetized in any direction; anisotropic ferrite magnets are different, they are all oriented in the manufacturing direction, and should be magnetized in the direction of orientation. For dry process, the tool can be changed and developed easily, while for wet process, it is complicated to change the tool and the tooling charge is much higher. At present, we have put our emphasis on arc segment magnets for electric motors, disc magnets and block magnets for special applications .

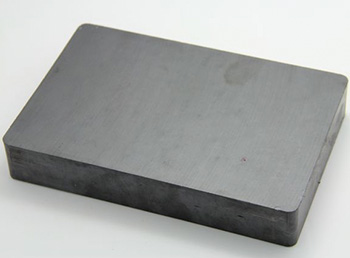

Main products includes :hard ferrite arc or segment,ring magnets,rectangular magnets,ferrite power etc.Which have the following advatages:high coercive force,high electric resistance,long-time stability,and economical price.Meanwhile,we can manufacture new tools according to the customers`demand.
MOSTLY USED NATIONAL STANDARD - SJ285-77 PERMANENT FERRITE MAGNET STANDARD
Grade | Value(min/typical in our factory) | |||||||
Br | Hcb(BHC) | Hcj(IHC) | (BH)max | |||||
MT | KG | KA/m | Koe | KA/m | KOe | Kj/m3 | MGOe | |
Y10T(=C1) | 200/218 | 2.00/2.18 | 125/145 | 1.57/1.82 | 210/250 | 2.64/3.14 | 6.5/8.0 | 0.8/1.0 |
Y25 | 360/370 | 3.60/3.70 | 135/150 | 1.70/1.88 | 140/170 | 1.76/2.14 | 22.5/25.3 | 2.8/3.2 |
Y30(=C5) | 380/385 | 3.80/3.85 | 191/210 | 2.40/2.64 | 199/220 | 2.50/2.51 | 26.0/28 | 3.4/3.7 |
Y30BH | 380/390 | 3.80/3.90 | 223/235 | 2.80/2.95 | 231/245 | 2.90/3.08 | 27.0/30.0 | 3.4/3.7 |
Y33 | 410/420 | 4.10/4.20 | 220/235 | 2.77/2.95 | 225/240 | 2.83/3.01 | 31.5/33.0 | 4.0/4.2 |
Y35 | 400/410 | 4.00/4.10 | 175/195 | 2.20/2.45 | 180/200 | 2.26/2.51 | 30.0/32.0 | 3.8/4.0 |
C8(=C8A) | 385/390 | 3.85/3.90 | 235/255 | 2.95/3.20 | 242/265 | 3.05/3.33 | 27.8/30.0 | 3.5/3.7 |
C10 | 400/410 | 4.00/4.10 | 288/300 | 3.62/3.77 | 280/287 | 3.51/3.60 | 30.4/31.9 | 3.8/4.0 |
CHINESE STANDARD -SJ/T10410 2000 PERMANENT FERRITE MAGNET STANDARD
Material | Br | HcB | HcJ | (BH)max | ||||
mT | KG | KA/m | Oe | KA/m | Oe | Kj/m³ | MGOe | |
Y8T | 200~235 |
| 125~160 |
| 210~280 |
| 6.5~9.5 |
|
Y22H | 310~360 |
| 220~250 |
| 280~320 |
| 20.0~24.0 |
|
Y25 | 360~400 |
| 135~170 |
| 140~200 |
| 22.5~28.0 |
|
Y26H-1 | 360~390 |
| 220~250 |
| 225~255 |
| 23.0~28.0 |
|
Y26H-2 | 360-380 |
| 263-288 |
| 318-350 |
| 24.0-28.0 |
|
Y27H | 370~400 |
| 225-240 |
| 235-260 |
| 25.0~29.0 |
|
Y28 | 370-400 |
| 175-210 |
| 180-220 |
| 26.0-30.0 |
|
Y28H-1 | 380-400 |
| 240-260 |
| 250-280 |
| 27.0-30.0 |
|
Y28H-2 | 360-380 |
| 271-295 |
| 382-405 |
| 26.0-30.0 |
|
Y30 | 370~400 | 3.7~4.0 | 175~210 | 2.20~2.64 | 180~220 | 2.26~2.77 | 26.0~30.0 | 3.3~3.8 |
Y30H-1 | 380~400 |
| 230-275 |
| 235-290 |
| 27.0~32.5 |
|
Y30H-2 | 395-415 |
| 275-300 |
| 310-335 |
| 27.0~32.0 |
|
Y32 | 400~420 |
| 160~190 |
| 165~195 |
| 30.0~33.5 |
|
Y32H-1 | 400-420 |
| 190-230 |
| 230-250 |
| 34.5-35.0 |
|
Y32H-2 | 400-440 |
| 224-240 |
| 230-250 |
| 31.0-34.0 |
|
Y33 | 410~430 |
| 220~250 |
| 225~255 |
| 31.5~35.0 |
|
Y33H | 410-430 |
| 250-270 |
| 250-275 |
| 31.5-35.0 |
|
Y34 | 420-440 |
| 200-230 |
| 205-235 |
| 32.5-36.0 |
|
Y35 | 430-450 |
| 215-239 |
| 217-242 |
| 33.1-33.2 |
|
USA STANDARD - PERMANENT FERRITE MAGNET INDUSTRY STANDARD OF USA
Material | Br | HcB | HcJ | (BH)max | ||||
mT | KG | KA/m | KOe | KA/e | KOe | kj/m³ | MGOe | |
C1 | 230 | 2.3 | 148 | 1.86 | 258 | 3.5 | 8.36 | 1.05 |
C5 | 380 | 3.8 | 191 | 2.4 | 199 | 2.5 | 27 | 3.4 |
C7 | 340 | 3.4 | 258 | 3.23 | 318 | 4.00 | 21.9 | 2.75 |
C8(=C8A) | 385 | 3.85 | 235 | 2.95 | 242 | 3.05 | 27.8 | 3.5 |
C8B | 420 | 4.2 | 232 | 2.913 | 236 | 2.96 | 32.8 | 4.12 |
C9 | 380 | 3.8 | 280 | 3.516 | 320 | 4.01 | 26.4 | 3.32 |
C10 | 400 | 4.0 | 288 | 3.617 | 280 | 3.51 | 30.4 | 3.82 |
C11 | 430 | 4.3 | 200 | 2.512 | 204 | 2.56 | 34.4 | 4.32 |
JAPAN TDK STANDARD
Grade | Composition¡¡ | Br | Hcb | Hcj | BH max | ||||||
mT | kG | kA/m | kOe | kA/m | kOe | KJ/m3 | MGOe | ||||
FB40 | SrO6Fe2O3 | 410+/-10 | 4.1+/-10 | 234.8+/-11.9 | 2.95+/-0.15 | 238.7+/-15.9 | 3.0+/-0.2 | 31.4+/-1.6 | 3.95+/-0.2 | ||
FB3N | SrO6Fe2O3 | 395+/-15 | 3.95+/-15 | 234.8+/-11.9 | 2.95+/-0.15 | 238.7+/-15.9 | 3.0+/-0.2 | 28.7+/-2.4 | 3.6+/-0.3 | ||
FB3G | SrO6Fe2O3 | 375+/-15 | 3.75+/-15 | 254.6+/-15.9 | 3.2+/-0.2 | 270.6+/-19.9 | 3.4+/-0.25 | 25.9+/-2.4 | 3.25+/-0.3 | ||
FB3X | SrO6Fe2O3 | 375+/-15 | 3.75+/-15 | 234.8+/-11.9 | 2.95+/-0.15 | 238.7+/-15.9 | 3.0+/-0.2 | 25.9+/-2.4 | 3.25+/-0.3 | ||
FB1A | SrO6Fe2O3 | 220+/-15 | 2.20+/-15 | 159.2+/-15.9 | 2.0+/-0.2 | 258.6+/-19.9 | 3.25+/-0.25 | 8.9+/-1.6 | 1.1+/-0.2 | ||
FB5H | SrO6Fe2O3 | 405+/-15 | 4.05+/-15 | 298.4+/-11.9 | 3.75+/-0.15 | 322.3+/-11.9 | 4.05+/-0.15 | 31.1+/-1.6 | 3.9+/-0.2 | ||
FB4X | SrO6Fe2O3 | 420+/-10 | 4.20+/-10 | 234.8+/-11.9 | 2.95+/-0.15 | 238.7+/-15.9 | 3.0+/-0.2 | 33.4+/-1.6 | 4.2+/-0.2 | ||
FB4B | SrO6Fe2O3 | 400+/-10 | 4.00+/-10 | 254.6+/-11.9 | 3.2+/-0.2 | 262.6+/-19.9 | 3.3+/-0.25 | 30.3+/-1.6 | 3.8+/-0.2 | ||
FB4A | SrO/BaO6Fe2O3 | 410+/-10 | 4.10+/-10 | 175.1+/-15.9 | 2.2+/-0.2 | 176.7+/-15.9 | 2.22+/-0.2 | 31.8+/-1.6 | 4.0+/-0.2 | ||
FBGN | SrO6Fe2O3 | 440+/-10 | 4.40+/-10 | 258.6+/-11.9 | 3.25+/-0.15 | 262.6+/-11.9 | 3.3+/-0.15 | 36.7+/-1.6 | 4.6+/-0.2 | ||
FB6B | SrO6Fe2O3 | 420+/-10 | 4.20+/-10 | 302.4+/-11.9 | 3.8+/-0.15 | 318.3+/-11.9 | 4.0+/-0.15 | 33.4+/-1.6 | 4.2+/-0.2 | ||
FB6H | SrO6Fe2O3 | 400+/-10 | 4.00+/-10 | 302.4+/-11.9 | 3.8+/-0.15 | 358.1+/-11.9 | 4.5+/-0.15 | 30.3+/-1.6 | 3.8+/-0.2 | ||
FB6E | SrO6Fe2O3 | 380+/-10 | 3.80+/-10 | 290.5+/-11.9 | 3.65+/-0.15 | 393.9+/-11.9 | 4.95+/-0.15 | 27.5+/-1.6 | 3.45+/-0.2 | ||
FB5N | SrO6Fe2O3 | 440+/-10 | 4.40+/-10 | 256.8+/-11.9 | 2.85+/-0.15 | 2259.2+/-11.9 | 2.88+/-0.15 | 36.7+/-1.6 | 4.6+/-0.2 | ||
FB5B | SrO6Fe2O3 | 420+/-10 | 4.20+/-10 | 262.6+/-11.9 | 3.3+/-0.15 | 266.6+/-11.9 | 3.35+/-0.15 | 33.4+/-1.6 | 4.2+/-0.2 | ||
THE STANDARD FROM INTERNATIONAL ELECTRONICS COMMITTEE(IEC404-8-1)
Grade | Allowed Value (min/typical) | |||||||
Br | Hcb(BHC) | Hcj(IHC) | (BH)max | |||||
MT | KG | KA/m | KOe | KA/m | KOe | Kj/m³ | MGOe | |
HF8/22 | 200/220 | 2.00/2.20 | 125/140 | 1.57/1.76 | 220/230 | 2.76/2.89 | 6.5/6.8 | 0.8/1.1 |
HF20/19 | 320/333 | 3.20/3.33 | 170/190 | 2.14/2.39 | 190/200 | 2.39/2.51 | 20.0/21.0 | 2.5/2.7 |
HF20/28 | 310/325 | 3.10/3.25 | 220/230 | 2.76/2.89 | 280/290 | 3.52/3.64 | 20.0/21.0 | 2.5/2.7 |
HF22/30 | 350/365 | 3.50/3.65 | 255/265 | 3.20/3.33 | 290/300 | 3.64/3.77 | 22.0/23.5 | 2.8/3.0 |
HF24/16 | 350/365 | 3.50/3.65 | 155/175 | 1.95/2.20 | 160/180 | 2.01/2.26 | 24.0/25.5 | 3.0/3.2 |
HF24/23 | 350/365 | 3.50/3.65 | 220/230 | 2.76/2.89 | 230/240 | 2.89/3.01 | 24.0/25.5 | 3.0/3.2 |
HF24/35 | 360/370 | 3.60/3.70 | 260/270 | 3.27/3.39 | 350/360 | 4.40/4.52 | 24.0/25.5 | 3.0/3.2 |
HF26/16 | 370/380 | 3.70/3.80 | 155/175 | 1.95/2.20 | 160/180 | 2.01/2.26 | 26.0/27.0 | 3.2/3.4 |
HF26/18 | 370/380 | 3.70/3.80 | 175/190 | 2.20/2.39 | 180/190 | 2.26/2.39 | 26.0/27.0 | 3.3/3.4 |
HF26/24 | 370/380 | 3.70/3.80 | 230/240 | 2.89/3.01 | 240/250 | 3.01/3.14 | 26.0/27.0 | 3.3/3.4 |
HF26/26 | 370/380 | 3.70/3.80 | 230/240 | 2.89/3.01 | 260/270 | 3.27/3.39 | 26.0/27.0 | 3.3/3.4 |
HF26/30 | 385/395 | 3.85/3.95 | 260/270 | 3.27/3.39 | 300/310 | 3.77/3.89 | 26.0/27.0 | 3.3/3.4 |
HF28/26 | 385/395 | 3.85/3.95 | 250/265 | 3.14/3.33 | 260/275 | 3.27/3.45 | 28.0/30.0 | 3.5/3.8 |
HF28/28 | 385/395 | 3.85/3.95 | 260/270 | 3.27/3.39 | 280/290 | 3.50/3.60 | 28.0/30.0 | 3.5/3.8 |
HF30/26 | 395/405 | 3.95/4.05 | 250/260 | 3.14/3.33 | 260/270 | 3.27/3.39 | 30.0/31.5 | 3.8/3.9 |
HF32/17 | 410/420 | 4.10/4.20 | 160/180 | 2.01/2.26 | 165/175 | 2.07/2.20 | 32.0/33.0 | 4.0/4.1 |
HF32/22 | 410/420 | 4.10/4.20 | 215/225 | 2.70/2.83 | 220/230 | 2.76/2.89 | 32.0/33.0 | 4.0/4.1 |
HF32/25 | 410/420 | 4.10/4.20 | 240/250 | 3.01/3.14 | 250/260 | 3.14/3.27 | 32.0/33.0 | 4.0/4.1 |
PHYSICAL PROPERTY OF HARD FERRITE MAGNETS
Typical Physical Properties | |
Curie Temperature (°C) | 450 |
Maximum Operating Temperature (°C) | 250 |
Hardness (Hv) | 480-580 |
Density (g/cm3) | 4.8 - 4.9 |
Relative Recoil Permeability (μrec) | 1.05 - 1.20 |
Saturation Field Strength, kOe (kA/m) | 10 (800) |
Temperature Coefficient of Br (%/°C) | -0.2 |
Temperature Coefficient of iHc (%/°C) | 0.3 |
Tensile Strength (N/mm) | <100 |
Transverse Rupture Strength (N/mm) | 300 |
