Introduction

FEATURES：

1.Separating unit is driven by gear motor.
2.Rotation and magnetic filed angle can be adjustable to ensure a best separation effect.
3.Continuous self-cleaning design is suitable for automatic production line.
4.Custom made is available for inlet, outlet and magnetic strength.

APPLICATIONS：

Electric Drum Magnetic Separator can separate ferromagnetic impurities or ferromagnetic materials from bulk dry powdery or granule materials in the automatic production line which is widely used in industries of plastic, cereals, food, chemicals, mining, pharmacy, etc. It is Ideal for high flow, heavy ferro magnetic containment separating or sorting.

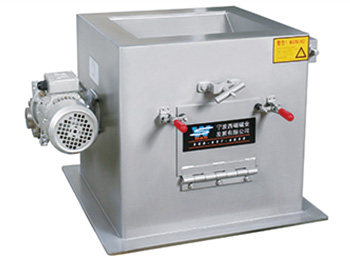

Electric Drum Magnetic Separator

SPECIFICATIONS：

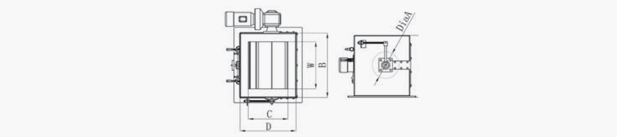

MODEL NO	Dimension(mm)						Weight(Kg)	KW
MODEL NO	Dia A	B	D	W	C	H	Weight(Kg)	KW
MHD2130	215	420	450	280	290	500	105	107
MHD2135	215	470	450	330	290	500	115	120
MHD2140	215	520	450	380	290	500	125	135
MHD2145	215	570	450	430	290	500	135	149
MHD2150	215	620	450	480	290	500	145	164
MHD2160	215	720	450	580	290	500	175	195
MHD2170	215	820	450	680	290	500	195	222
MHD2180	215	920	450	780	290	500	215	249
MHD2190	215	1020	450	880	290	500	225	280
MHD2110	215	1120	450	980	290	500	245	309
MHD3130	315	420	550	280	360	650	218	121
MHD3135	315	470	550	330	360	650	235	139
MHD3140	315	520	550	380	360	650	252	157
MHD3145	315	570	550	430	360	650	269	174.5
MHD3150	315	620	550	480	360	650	286	193
MHD3160	315	720	550	580	360	650	320	211
MHD3170	315	820	550	680	360	650	354	228
MHD3180	315	920	550	780	360	650	388	264
MHD3190	315	1020	550	880	360	650	422	300
MHD3110	315	1120	550	980	360	650	456	335
MHD3111	315	1220	550	1080	360	650	490	407
MHD4030	400	420	635	280	435	800	288	166
MHD4035	400	470	635	330	435	800	314	190
MHD4040	400	520	635	380	435	800	340	216
MHD4045	400	570	635	430	435	800	366	241
MHD4050	400	620	635	480	435	800	392	267
MHD4060	400	720	635	580	435	800	444	317
MHD4070	400	820	635	680	435	800	496	368
MHD4080	400	920	635	780	435	800	548	418
MHD4090	400	1020	635	880	435	800	600	469
MHD4010	400	1120	635	980	435	800	652	521
MHD4011	400	1220	635	1080	435	800	704	571
MHD4012	400	1320	635	1180	435	800	756	691
