FEATURES：

1.One separation unit from plate magnet.
2.Magnetic plate can be made from rare earth magnet or ferrite magnets as per customer’s request, Housing material can be 304 or 316 stainless steel.
3.The design of angle shape makes material to flow directly into the magnetic field in order to prevent material from caking and bridging and even to break up the caked material.
4.Simple structure,easy cleaning and assembling.
5.Custom made is available for inlet, outlet and any other special requirements.

APPLICATIONS：

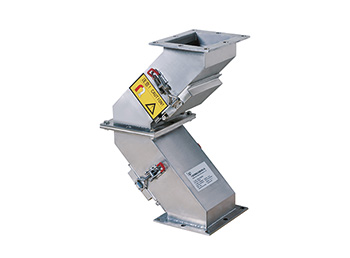

Hump Magnets are used to remove large pieces of tramp iron as well as ferrous fragments from gravity-flow materials or material flow activated by wind in enclosed flow lines before they reach storage bins or processing equipment. They can be mounted in spouting lines or on the processing machines.

Hump Magnet

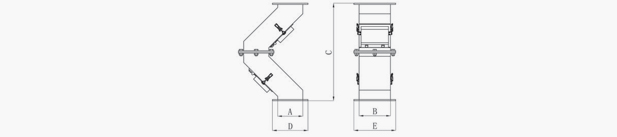

FERRITE HUMP MAGNET SPECIFICATIONS：

MODEL NO	Dimension(mm)					Weight(Kg)
MODEL NO	A	B	C	D	E	Weight(Kg)
SWFHM120	120	150	470	170	200	15
SWFHM150	150	178	750	250	220	37
SWFHM200	200	178	750	300	220	49
SWFHM250	250	178	750	350	220	61
SWFHM300	300	178	750	400	220	73
SWFHM350	350	200	1110	450	300	141
SWFHM400	400	200	1110	500	300	161
SWFHM450	450	200	1110	550	300	181
SWFHM500	500	200	1110	600	300	201

NDFEB HUMP MAGNET SPECIFICATIONS：

MODEL NO	Dimension(mm)					Weight(Kg)
MODEL NO	B	A	C	E	D	Weight(Kg)
SWNHM120	150	120	470	170	200	14
SWNHM150	178	150	750	250	220	33
SWNHM200	178	200	750	300	220	44
SWNHM250	178	250	750	350	220	55
SWNHM300	178	300	750	400	220	66
SWNHM350	200	350	1110	450	300	128
SWNHM400	200	400	1110	500	300	146
SWNHM450	200	450	1110	550	300	164
SWNHM500	200	500	1110	600	300	182
