PRODUCT DESCRIPTION：

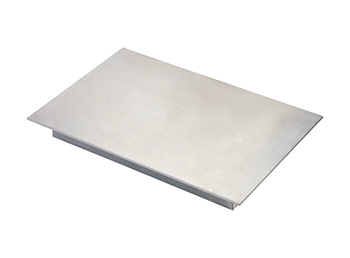

Flush Face Plate Magnets have ideal metal separation performance when assembled over the flow chute or belt applications with low-density product flows. Downstream processing facilities will be under continuous magnetic protection because plate magnets can lift ferrous tramps out of the product flow stream.
FEATURES：
1.Plate with different magnetic action range and strong magnetic strength are available.
2.Easy cleaning and assembling.
3.Housing material is stainless steel 304 or 316L which is no pollution to materials.
4.Magnetic plate with different dimensions and extra parts like hinge, handle and mounting hole can be custom made.
APPLICATIONS：
Plate magnet can remove tramp iron such as Bolts, Nuts, Bits of Wire, Nails and other casual impurities from free flowing materials, like gravel, corn, sugar, plastic, flour and other granular materials in the conveying course.
Flush Face

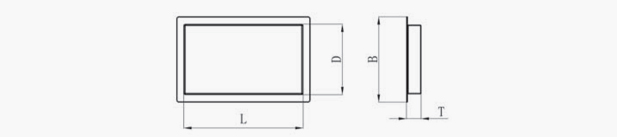

SPECIFICATIONS：
MODEL NO | Dimension(mm) | Weight(Kg) |
|---|
B | D | T |
|---|
SWFMP-FF60 | 250 | 175 | 51 | 5.7 |
SWFMP-FF120 | 300 | 225 | 76 | 10.4 |
SWFMP-FF150 | 450 | 360 | 111 | 19.1 |
SWNMP-FF60 | 190 | 125 | 36 | 3.7 |
SWNMP-FF120 | 250 | 175 | 46 | 5.9 |
SWNMP-FF150 | 330 | 240 | 56 | 10.3 |
