Introduction

FEATURES：

1.Plate Magnets are hinged to the housing like doors which is easy cleaning.

2.A wedge-shaped baffle at the top of the housing can prevent materials from bridging and choking and also can break up the caked material which makes the material flow through the surface of two powerful Plate Magnets.
3.With high power rare earth magnet, plate housing magnets ensure to grab all sizes of contamination firmly.
4.Custom made is available for inlet, outlet and any other special requirements.

APPLICATIONS：

Plate Housing Magnets are widely used in the filed of food,pharmacy,tobacco,chemical etc,to remove tramp iron and ferrous fines from flow-resistant bulk materials that are easy block. The stainless steel housings can be easily installed to enclosed spouting line or directly mounted on processing equipment.

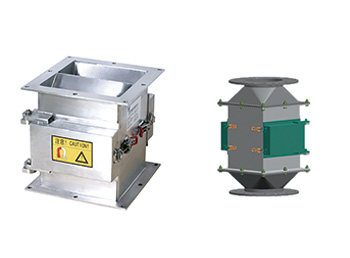

Plate House Magnet

SPECIFICATIONS：

MODEL NO	Dimension(mm)					Weight(Kg)
MODEL NO	ΦA	B	C	E	H	Weight(Kg)
MC150	150	208	208	322	470	27
MC200	200	208	258	322	470	34
MC250	250	258	358	372	500	62
MC2020	-	208	208	322	300	17
MC2025	-	208	258	322	300	21
MC2525	-	258	258	372	300	27
MC2530	-	258	308	372	300	32
MC2535	-	258	308	372	300	37
MC2540	-	208	408	372	300	42
MC2545	-	258	458	372	300	47
MC2550	-	208	508	372	300	53
MC2555	-	258	558	372	300	58
MC2560	-	258	608	372	300	63
