PRODUCT DESCRIPTION：

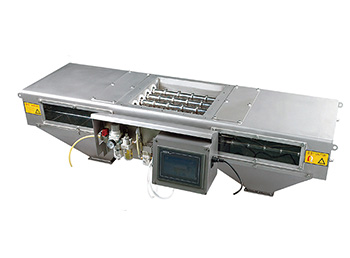

Program Controlled Pneumatic Magnetic Separator, also named Self Cleaning Magnetic Grate Separator, is designed for continuously production line to removeFerrum scraps from the materials without any interruption.
FEATURES：
1. Ferrum scraps automatic self-cleaning.
2. Touch screen control.
3. Over than 24 continuously working.
4. Super performance of removing Ferrum scraps, standard power 8500GS at standard working temperature(≤80℃) as listed specification. As required, we can design it up to maximum 10000GS of magnetic strength with 250℃ ultimate working temperature.
5. Two row magnetic grids for the standard model as listed. As required, specification of customer is also available.
APPLICATIONS：
Automatic removing Ferrum scraps from dry powder or graininess materials such as sugar, grain, tea, flour etc.

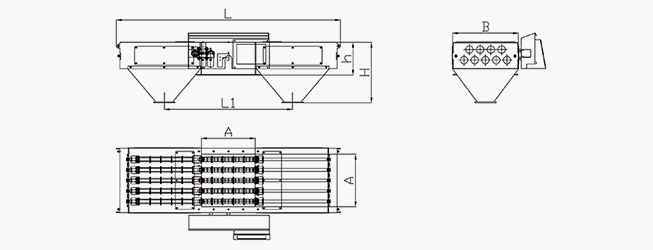

SPECIFICATIONS：
| MODEL NO | Dimension(mm) | No. of rods |
|---|
| A | B | h | H | L1 | L | 1st layer | 2nd layer |
|---|
| S-PCPS40/40SN | 400 | 490 | 250 | 460 | 955 | 1669 | 4 | 5 |
Self-cleaning Magnetic grate separator list for round inlet and outlet
